Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed

Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed
Informazioni di base
Luogo di origine: Shanghai, Cina
Marca: Daesum
Quantità di ordine minimo: 1
Miglior prezzo Contattaci
Applicazione: Bevande, prodotti chimici, riempimento automatico, tappatura e pallettizzazione Tipo di imballaggio: Bottiglie, canna
Materiale da imballaggio: Plastica, legno Grado automatico: Automatico
Tipo guidato: Elettrico Voltaggio: adeguato in base alla situazione reale
Dimensione (L*W*H): adeguato in base alla situazione reale Garanzia: 1 anno
Punti chiave di vendita: Facile da usare Materiale di riempimento: Birra, Latte, Acqua, Olio, Succo, Altro, Liquido
Riempimento della precisione: ± 0,2%fs rapporto di prova del macchinario: Fornito
videoispezione in uscita: Fornito Componenti principali: Motore, PLC, ingranaggio, cuscinetto, cambio, motore, altro, ugello di riempimento
Ugello di riempimento: 6, 8, 10 Servizio post-vendita fornito: Video supporto tecnico, supporto online, installazione del campo, incaricante e preparantesi, ingegn
peso (kg): 2500 Volume di riempimento: 500 ml, 1 litro, 300 ml
Applicazione: Medico/chimico Fabbricazione di ugelli: 6-16 ugelli
Grado automatico: Completamente automatico Velocità di riempimento: 1000-2000 BPH
Precisione: ± 0,2% fs Temperatura ambiente: -10 ℃ ~ 40 ℃
Livello di protezione: Meglio di IP55 Materiale: SS304/SS316/PTFE
Prodotti di riempimento: Gel/Olio/Liquido
Evidenziare:

fully automatic small bottle filling machine

,

250-500ml bottle filling machine with nozzles

,

small bottle filler 1000-2000 BPH speed

Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 0
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 2
250-500mL Fully Automatic Small Bottle Chemical Liquid Filling Machine
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 4
Equipment Description

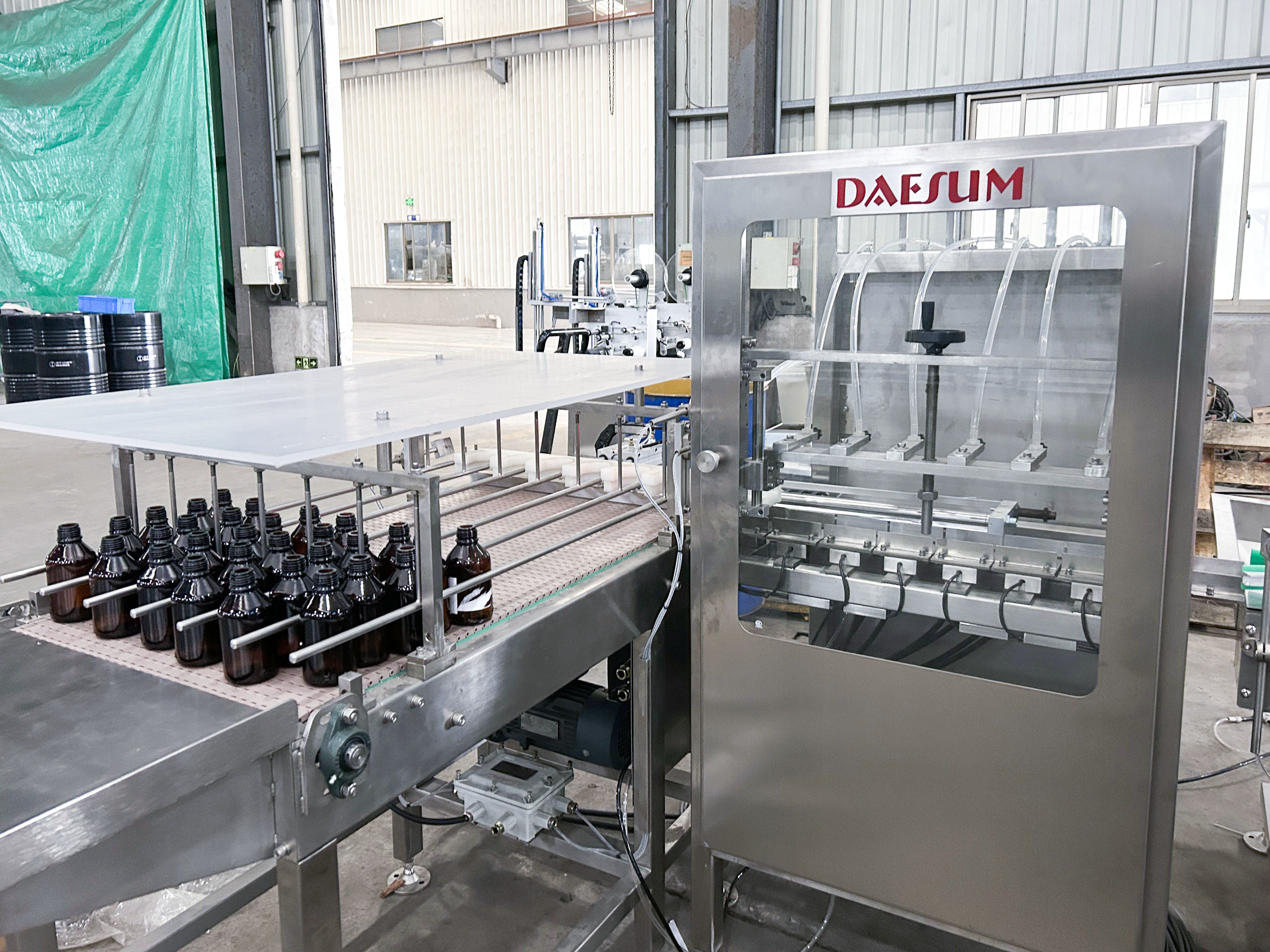

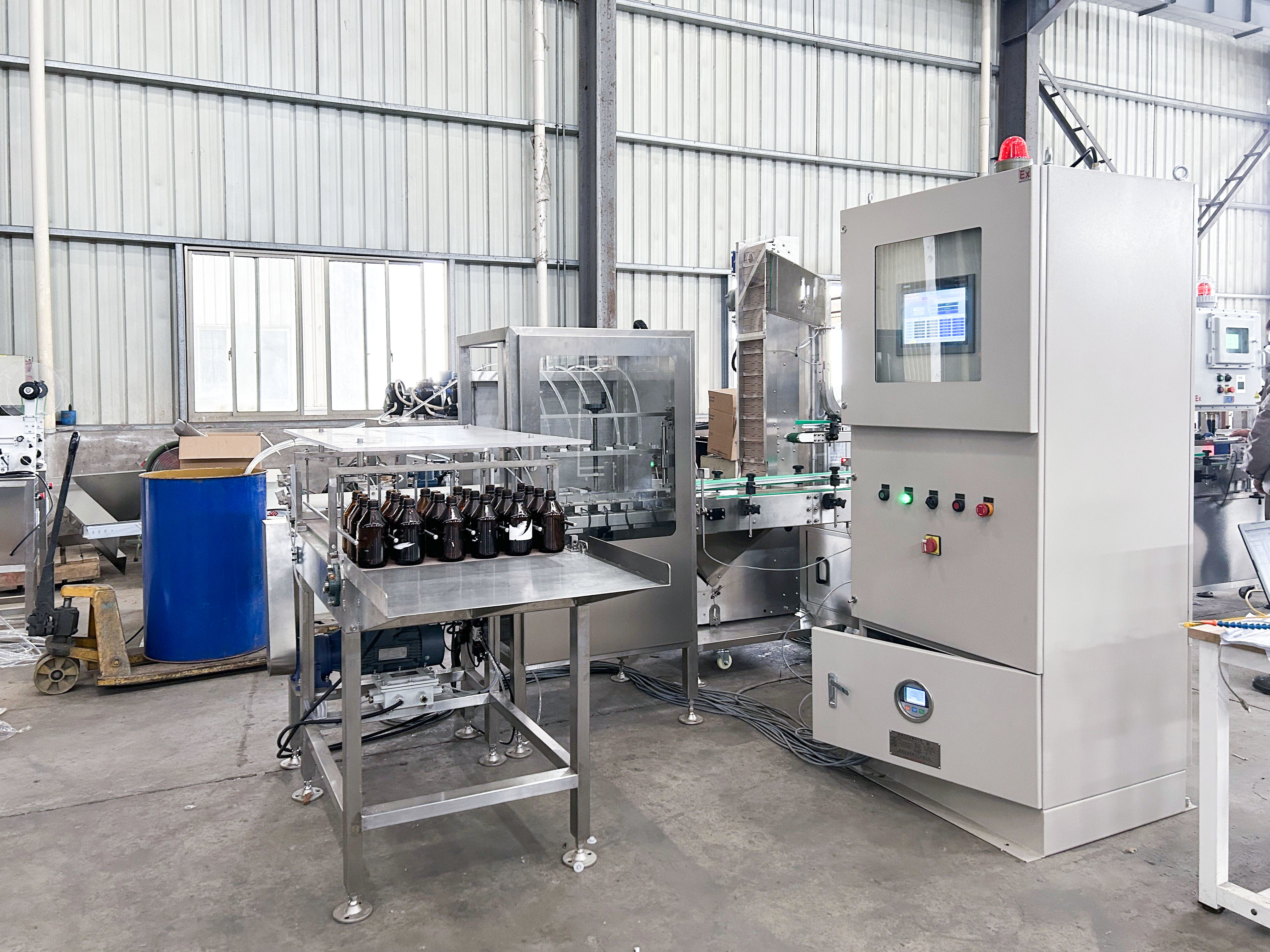

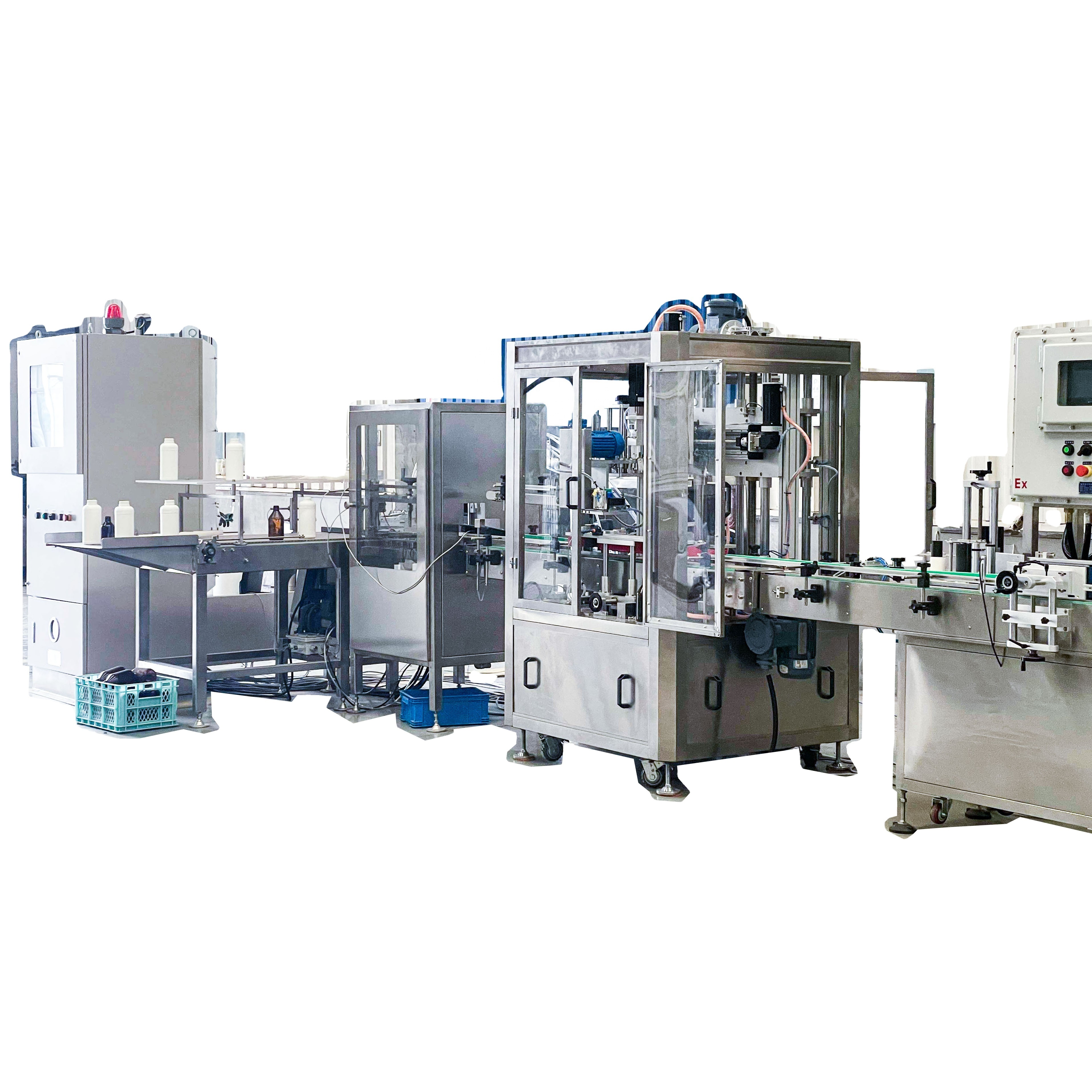

The equipment realizes automatic small bottle infeed, quantitative filling, capping, labeling and bottle collection. There is 6-12 weighing scales, and can fill 3 different sizes of bottles. The machine is explosive proof, and production speed could reach 1000-2000 bph. The machine is equipped with high speed tracing capping machine, and high speed bottle rotary labeling machine, which could ensure production capacity.
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 6
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 8
The equipment using peristaltic pump to realize material adding, so that the machine could fill various types of liquid. The machine is easy to operate, and easy to maintenance.
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 10

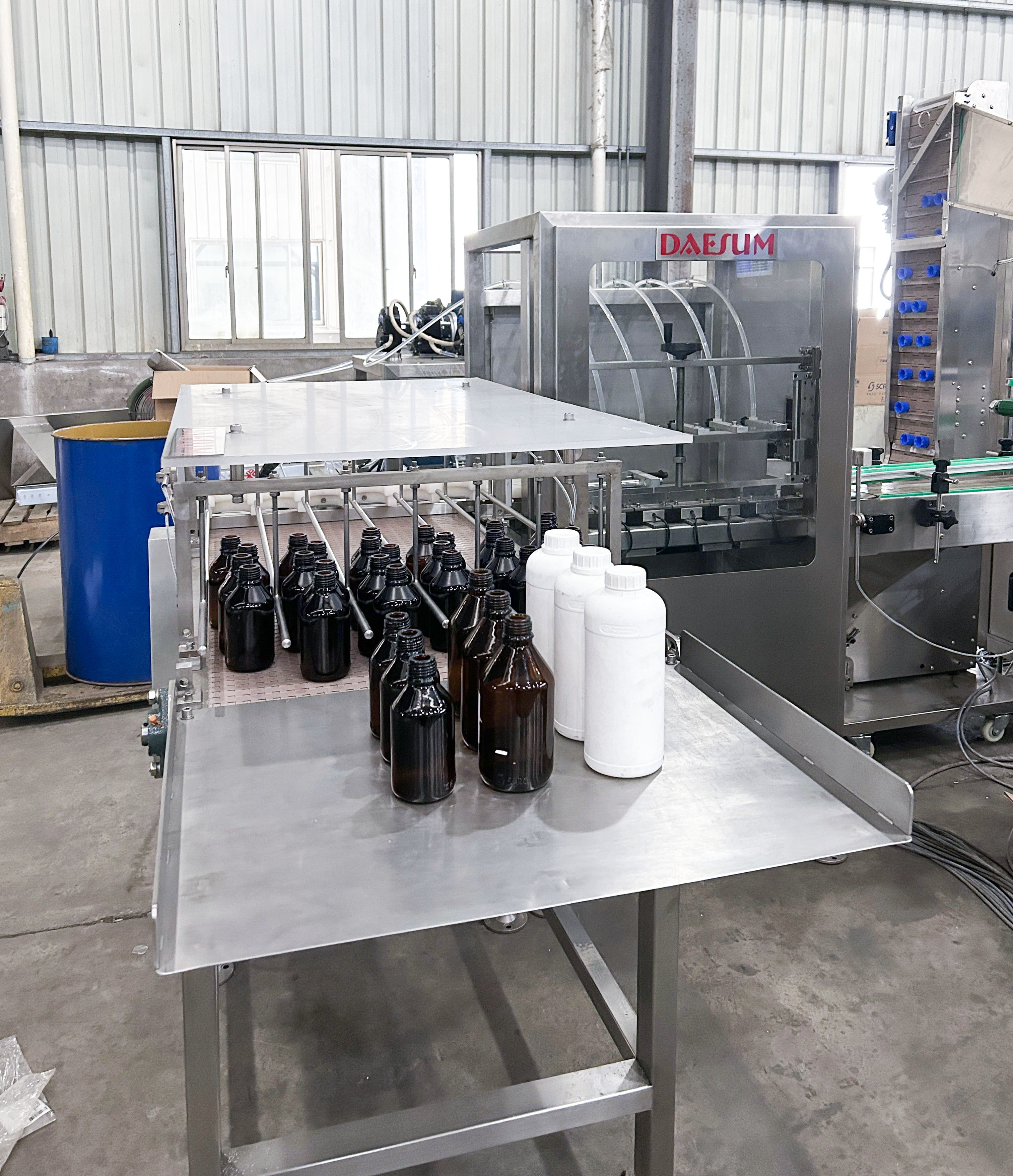

Mesh conveyor

1.Can be equipped with mesh conveyor for bottles infeed.
2.Driven by gear motor
3.Infeed 6 at a time
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 12

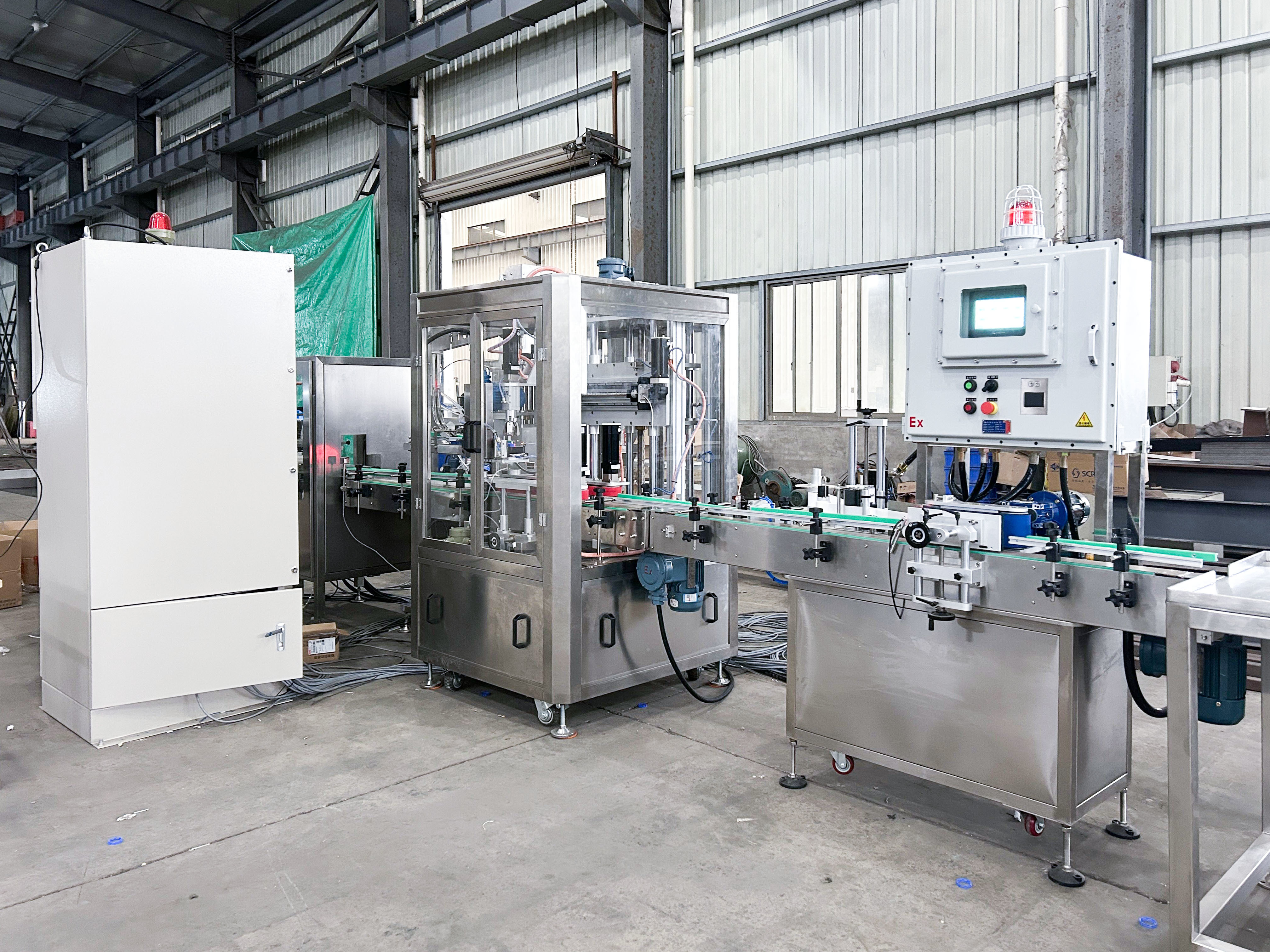

Tracing capping and labeling

1.High speed capping, up to 1600bph/gripper
2.High speed labeling, up to 2500bph
Specification
Automatic Grade
Fully Automatic
Power
380/440V 50/60Hz
Air pressure
0.4-.0.6Mpa
Filling Accuracy
0.2%FS
Maximum weight
2kg
Interval
1g
Material
SS304/SS316/PTFE
Container
Bottle/Barrel/
Filling range
250-500ml
Filling products
Oil/Liquid
Filling speed
1000-2000bph
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 14
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 16

Special Applications

DAESUM is specialized in the design and manufacture of special industrial filling, packing and dosing and mixing production line, particularly expertise in dealing with explosive, flammable, toxic, harmful, high-temperature and viscous material.
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 18
3.High-temperature and corrosive scenarios
Choose temperature-resistant and corrosion-resistant materials to make material touching parts to ensure the reliability and durability of the machine
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 20
4.Low melting point and easily solidified scenarios
The heat keeping design of the filling nozzle is adopted to prevent the material from cooling and blocking the pipeline and ensure a smooth filling path.
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 22
1.Flammable and explosive scenarios
The ex-proof and anti-static design of the whole line is adopted, the flow rate is controlled by the front-end combination valve,and the ex-proof electrical equipment of the world's first-class brand is configured to ensure production safety.
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 24
2.Toxic and harmful scenarios
The design of closed filling room and air extraction makes the filling environmentally friendly and healthy.
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 26
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 28
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 30
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 32
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 34
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 36
ISO 9001 Certificate
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 38
ISO 14001 Certificate
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 40
ISO 45001 Certificate
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 42
F&Q
1. When was Daesum first established? Where is our factory located at?
- Shanghai Daesum Science Instrument and Equipment Co., Ltd. (“DAESUM”), founded in 1997, is located in 2688 Xinghua Road, Jiading, Shanghai. The company built its own production and living site, with total GFA of 7000m². The site is composed of 5 workshops, 1 office building, and 1 complex building. The workshops occupy around 3600m² in total.
2. What kind of product do you provide?
- 1-1000L filling machines, and powder packing machines, as well as dosing and mixing production line.
3. Can you do explosion proof filling machines?
- Yes
4. What kind of service can you provide?
- We could offer preliminary customized machine design, to manufacture, to installation, to commissioning and after-sales service.
5. Where can you export?
- We export wordwide, we have exported to the USA, Mexico, Australia, Japan, Malaysia, UAE, the Philippines, Singapore, Pakistan, India, and etc.
6. If we need maintenance or meet problem, how could you help?
- Please call or email us the problem you meet, we will reply asap. If necessary, we could offer remote access to help solve the software problem. Otherwise, we would advise you the spareparts to replace the existing broken ones.
7. What kind of package would you use?
- For the entire machine, we usually make shipment in independent containers, and our staff will wrap films around the machine, then fixed it in the container.
- For spareparts, we usually send by air express with boxes.
